TrailMax Roof Rack Platform to suit Next Gen Ford Raptor
$1,590.00 – $4,945.00
or 4 fortnightly payments from $397.50 with
More info
TrailMax Roof Rack Platform to suit Next Gen Ford Ranger
TrailMax Roof Rack Platform to suit Next Gen Ford Raptor
A streamlined and versatile roof rack platform to suit Next Gen Ford Raptor, with practical mounting system, enables you to mount anything you require for your next job or adventure. The sleek design allows for less wind resistance, less wind noise and better fuel economy.
Includes brackets to fit our optional 32″ light bar flush at the front, meaning it won’t interfere with items overhanging the rack platform. Integrated location to flush mount our optional 20″ Super Slim light bar to the rear.
Integrated rear lights (2x 40w) as standard. Used for reverse, or rear accessory lighting, depending on how you choose to wire them.
Additional integrated locations in the side rails to flush mount optional 2x HD Pod Lights on each side.
Options:

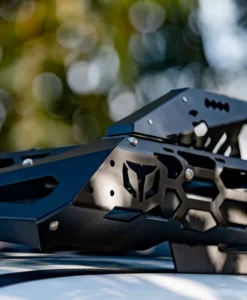

- Side rails, these light-weight, yet strong, TrailMax Side Rails convert the flat rack into a tradie-style rack, making it simple to carry an assortment of equipment.

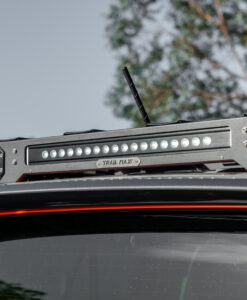

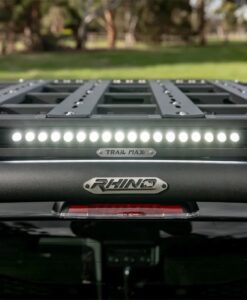

- 20″ rear light bar.
- 20” length
- 90 Watt
- Spot beam 10 degree
- 18 x 5w Cree LEDs
- 7,500 Lumens
- Superior optical polycarbonate lens
- High quality, CNC’d 6063 Aluminum Alloy Housing
- IP68 water rated
- Wiring harness NOT included

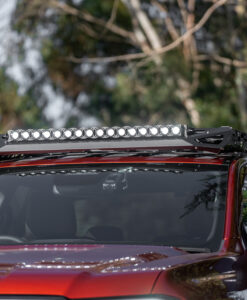

- Front light bar
- 100 – 165W
- 10,000 – 15,000 Lumens
- Colour temperature 6000k (Day white)
- 6063 aluminum housing
- 204 Stainless Steel brackets
- IP68 Rated
- Strong and high impact resistance, PC lens
- Wiring harness included

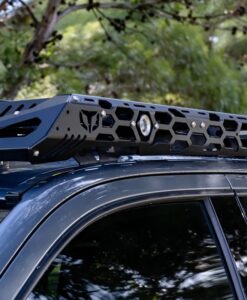

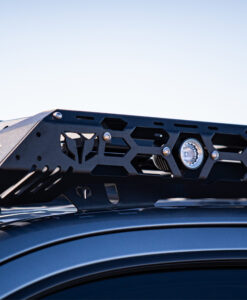

- Pod lights
- 10 Watt, 1000 Lumens
- 108 x 108 mm
- Optical polycarbonate lens, high impact resistance
- High quality, anodized CNC’d 6063 aluminum alloy housing
- Heavy duty, fully adjustable, alloy mounting brackets and stainless steel hardware
- High quality DEUTSCH DT electrical connector to prevent water ingress.
- IP68 Rated
- Pod lights are mounted on adjustable mounts so you can customize where you want the lights pointed
- Wiring harness NOT included
- When fitted by JHP all pod lights are wired to one switch, if you want them wired differently please contact JHP
Notes:
- The rear work lights are included with this rack but do not include wiring. Wiring is included when fitted at JHP if you select “Rear work lights only fitted and wired (Included with rack)”.
- For ship out or pick-up please select “Rear work lights, not wired (Included with rack)”
Links:
- Click here!! to check out the finished product.
- While you’re making changes for the check out our Raptor Rhino bar, Click here?
| Weight | 40 kg |
|---|---|
| Dimensions | 156 × 60 × 40 cm |
| Add Side Rails | Yes, add side rails, No, Roof Rack only |
| Lighting Options | Rear work lights, not wired (Included with rack), Rear work lights only fitted and wired (Included with rack), Rear work lights + Front light bar, Rear work lights + Rear light bar, Rear work lights + Pods lights, Rear work lights + Front light bar + rear light bar, Rear work lights + Front light bar + Pod lights, Rear work lights + Rear Light bar + Pod lights, Rear work lights + Front light bar + Rear light bar + Pod lights |
| Fitted At JHP? |
